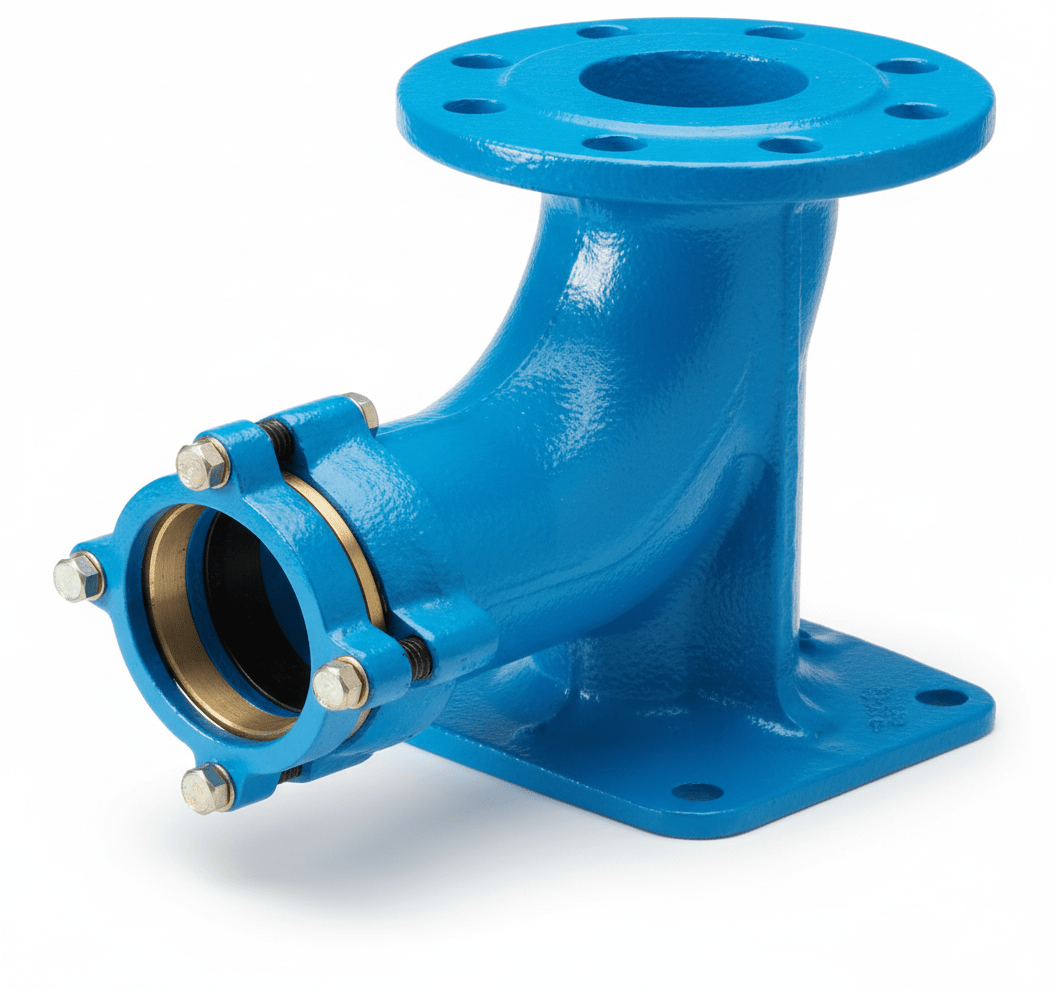

DUCK FOOT BEND
Duck foot bend for pipe direction changes. Flanged to socket connection with stable flat base design.
Description
DUCK FOOT BEND
High-quality duck foot bend for pipe systems. Specialized elbow fitting for changing flow direction, typically used in pumping applications or where transition from flanged to socket connection is required. Robust design with flat base for stable installation.
TECHNICAL CHARACTERISTICS:
- Material: Ductile Cast Iron (DCI) with epoxy coating
- Working Pressure: Up to 16 bar
- Temperature: -10°C to +80°C
- Standard: EN 545 / EN 598
- Finish: Blue epoxy coating RAL 5002
APPLICATIONS:
- Potable water supply systems
- Water distribution networks
- Pumping installations
- Direction changes in main pipelines
ADVANTAGES:
- Stable design with flat base
- Easy installation and maintenance
- Corrosion resistance
- European standards compliance

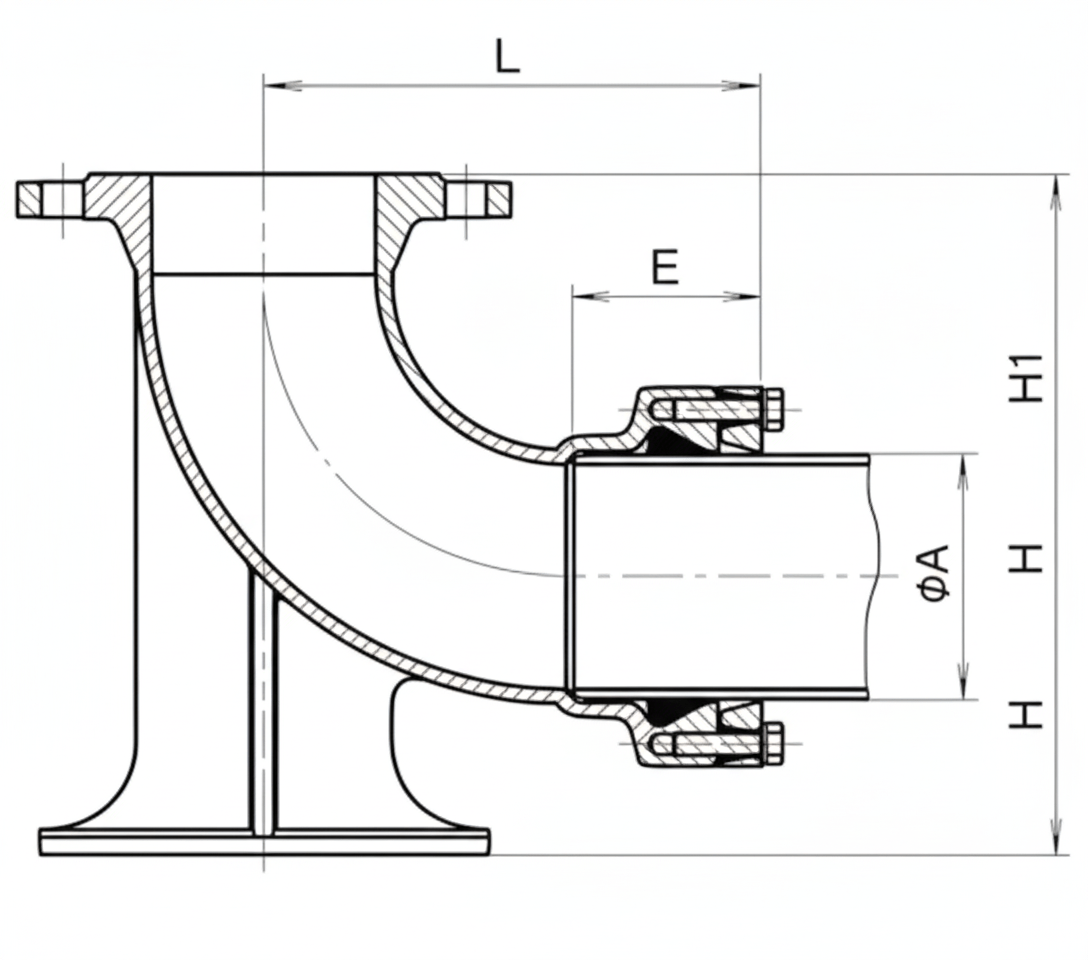

DIMENSIONS TABLE:
| DN (mm) | L (mm) | H (mm) | Weight (kg) |
|---|---|---|---|
| 80 | 200 | 150 | 8.5 |
| 100 | 250 | 180 | 12.3 |
| 150 | 300 | 220 | 18.7 |
| 200 | 350 | 280 | 28.4 |
INSTALLATION NOTES:
Ensure proper alignment and use appropriate gaskets for flanged connections. Follow local plumbing codes and manufacturer recommendations for installation procedures.
MAINTENANCE:
Regular inspection recommended. Clean connections and check for any signs of wear or corrosion. Replace gaskets as needed.
Additional information
| Size (DN) | 80, 100 |
|---|---|
| Pipe Diameter (ØPipe) | 90, 110 |
