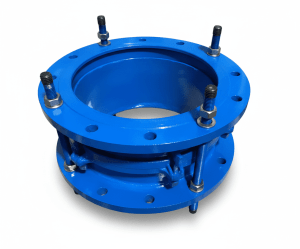

Rigid type dismantling joint PN40
Rigid dismantling joint with PN40 pressure rating, suitable for DN80 to DN1200 sizes. High-pressure industrial applications with excellent performance.
Description
Product overview
High-quality rigid type dismantling joint designed for high-pressure applications. Features PN40 pressure rating with excellent performance in demanding industrial environments.
Specifications
- Pressure rating: PN40
- Size range: DN80 to DN1200
- Application: High-pressure industrial piping systems
- Material: Ductile Iron construction
- Gasket: EPDM/NBR options available
- Adjustment range: ±25mm
Material specification
| Component | Material |
|---|---|
| Body | Ductile Iron |
| Gasket | EPDM/NBR |
| Bolts | Carbon Steel/Stainless Steel |
The rigid type dismantling joint PN40 serves higher-pressure industrial and utility applications across Europe where axial control and repeatable maintenance access are essential. Built with EN545-compliant ductile iron and quality gaskets, it delivers the mechanical performance B2B buyers expect on critical pipeline assets.
Competitive project pricing, transparent specifications and export-ready documentation support EPC and distributor supply chains. Contact us for MOQ, pricing and technical approval files.

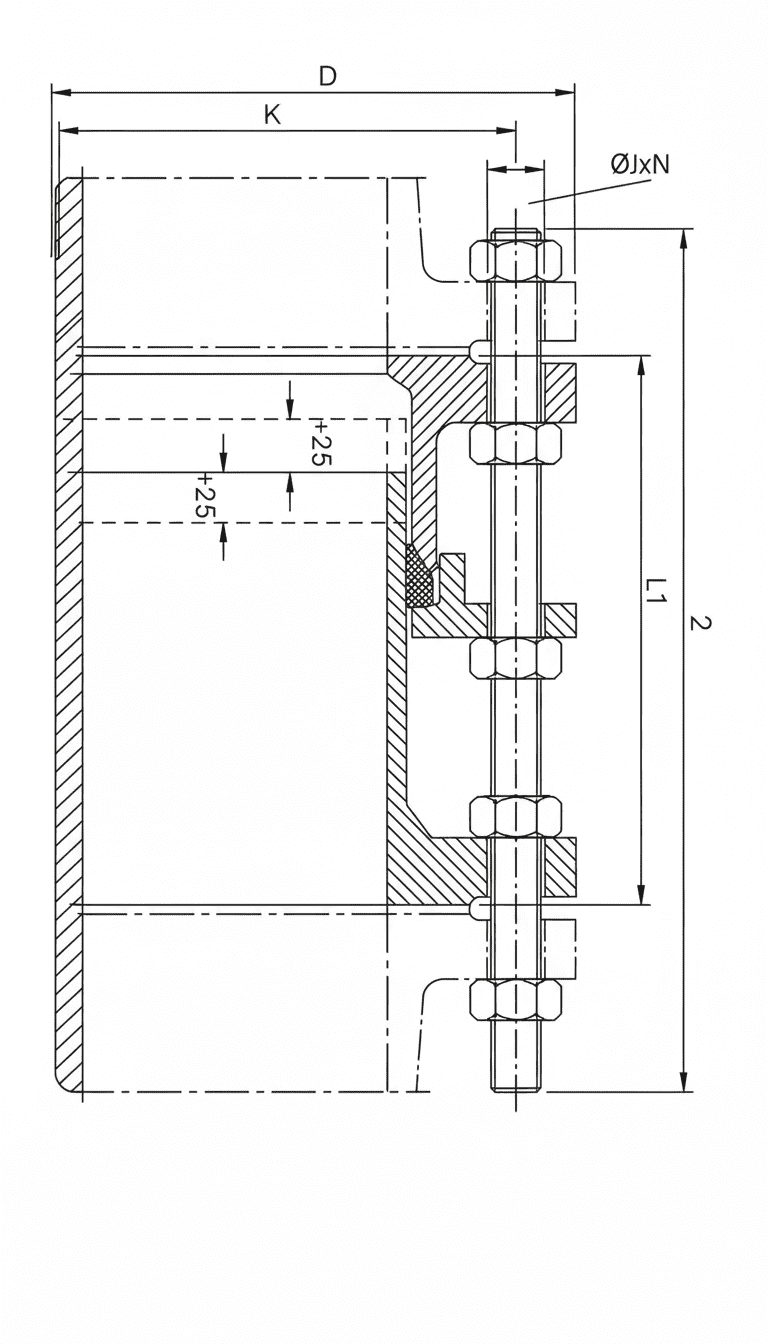

Dimensions (mm)
| Size | D | K | L1 | L2 | ØxN | Weight (kg) |
|---|---|---|---|---|---|---|
| DN80 | 200 | 160 | 230 | 380 | 19×8 | 29 |
| DN100 | 235 | 190 | 240 | 390 | 23×8 | 35 |
| DN125 | 270 | 220 | 250 | 400 | 28×8 | 42 |
| DN150 | 300 | 250 | 260 | 410 | 28×8 | 48 |
| DN200 | 360 | 310 | 280 | 430 | 28×12 | 65 |
| DN250 | 425 | 370 | 300 | 450 | 31×12 | 85 |
| DN300 | 485 | 430 | 320 | 470 | 31×16 | 110 |
| DN350 | 555 | 490 | 340 | 490 | 34×16 | 140 |
| DN400 | 620 | 550 | 360 | 510 | 37×16 | 175 |
| DN450 | 670 | 600 | 380 | 530 | 37×20 | 210 |
| DN500 | 730 | 660 | 400 | 550 | 37×20 | 250 |
| DN600 | 845 | 770 | 440 | 590 | 40×20 | 350 |
| DN700 | 960 | 875 | 480 | 630 | 43×24 | 450 |
| DN800 | 1085 | 990 | 520 | 670 | 49×24 | 580 |
| DN900 | 1185 | 1090 | 560 | 710 | 49×28 | 720 |
| DN1000 | 1320 | 1210 | 600 | 750 | 56×28 | 900 |
| DN1200 | 1575 | 1460 | 680 | 830 | 62×32 | 1300 |
Applications
Ideal for high-pressure industrial piping systems, power plants, chemical processing facilities, and other applications requiring reliable dismantling joints with PN40 pressure rating.
Please note dimension may vary at our discretion.
