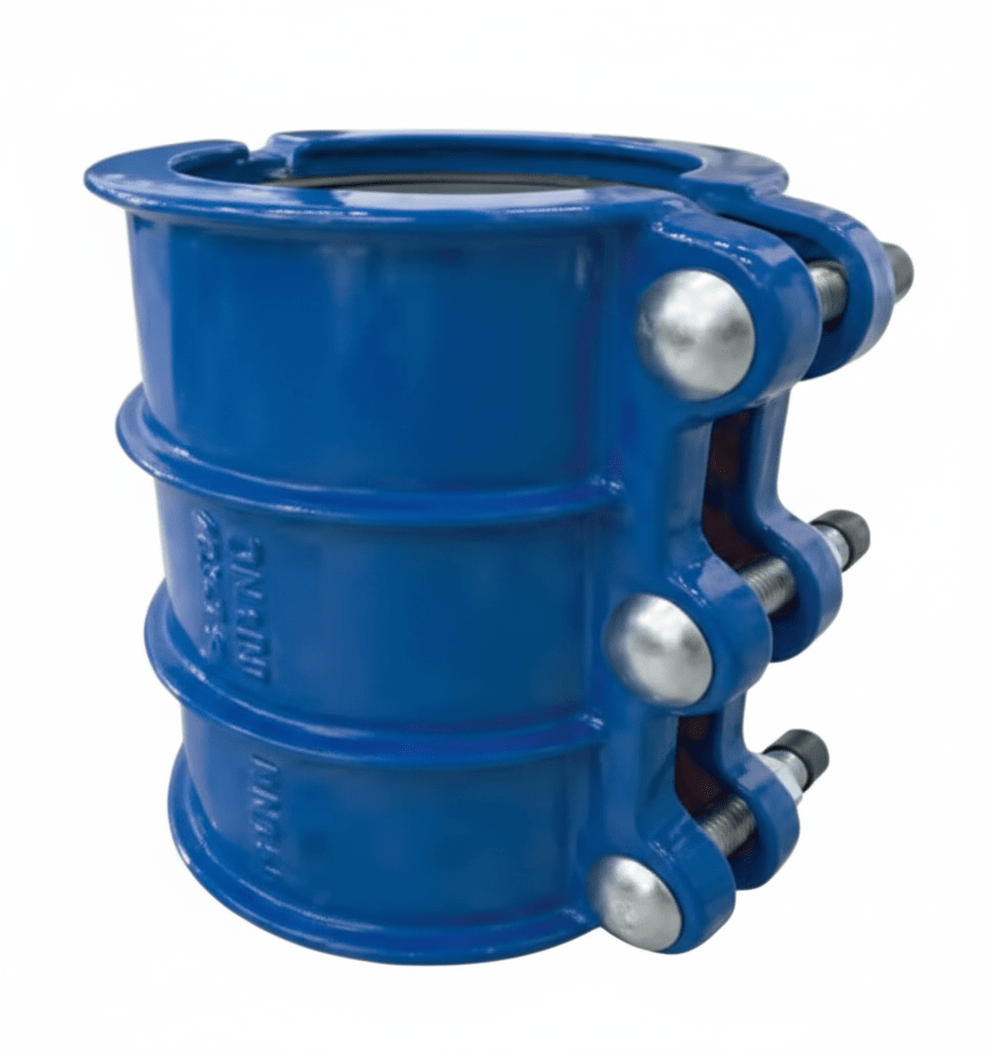

Wide Range Ductile Iron Repair Clamp PN10/PN16
Description
Wide Range Ductile Iron Repair Clamp PN10/PN16
Professional wide range ductile iron repair clamp designed for multiple pipe types with EN545 compliance and PN10/PN16 pressure ratings. This versatile repair clamp provides reliable sealing and structural support for various pipe materials.
Key Features:
- Repair clamp standard: EN545
- Coating standard: EN30677
- Test standard: EN12266-1
- Size range: DN80 to DN300
- Working pressure: PN10/PN16
- Temperature range (EPDM gasket): -10°C to 120°C
- Temperature range (NBR gasket): -10°C to 82°C
- Connection for: PVC, HDPE, DI, Steel, GRP pipes
- Suitable for: potable water, neutral liquids and sewage
- WRAS approval: Available upon request
Applications:
- PVC pipe connections
- HDPE pipe repairs
- Ductile iron pipe connections
- Steel pipe repairs
- GRP pipe connections
- Potable water systems
- Neutral liquids applications
- Sewage systems
- Industrial piping repairs

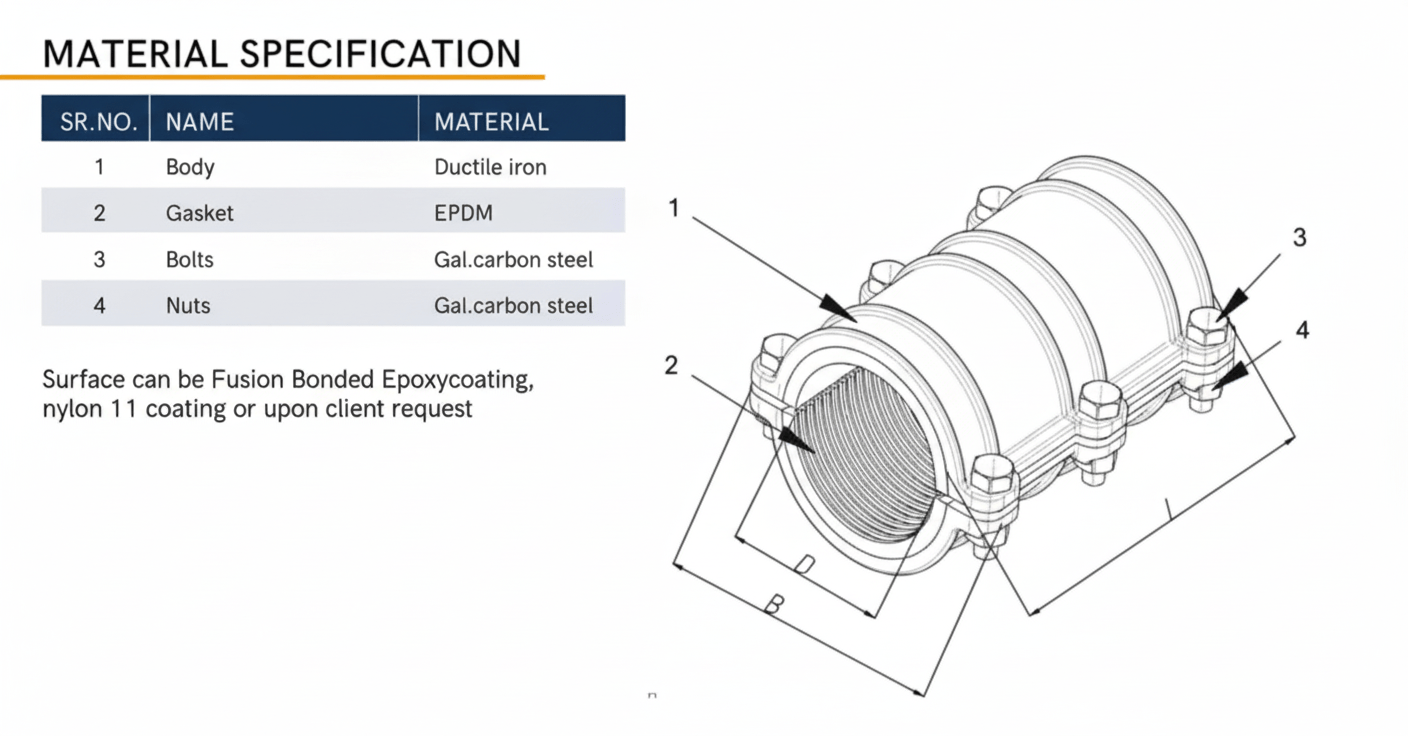

Material Specification:
| SR.NO. | PARTS NAME | MATERIAL |
|---|---|---|
| 1 | Body | Ductile Iron |
| 2 | Gasket | EPDM |
| 3 | Bolts | Gal.carbon steel |
| 4 | Nuts | Gal.carbon steel |
Surface finish: FBE coating, Nylon 11 coating or upon client request
DIMENSIONS (UNIT MM)
| DN | D | L | B |
|---|---|---|---|
| 80 | 88-99 | 225 | 219 |
| 100 | 108-119 | 225 | 219 |
| 150 | 158-169 | 225 | 219 |
| 200 | 208-219 | 310 | 219 |
| 250 | 258-269 | 310 | 219 |
| 300 | 308-319 | 310 | 219 |
Big size also available upon request. Please note dimension may vary at our discretion.
Additional information
| Size | DN80, DN100, DN150, DN200, DN250, DN300 |
|---|
