Wide Range 3PCS Ductile Iron Repair Clamp PN10/PN16
Description
Wide Range 3PCS Ductile Iron Repair Clamp PN10/PN16

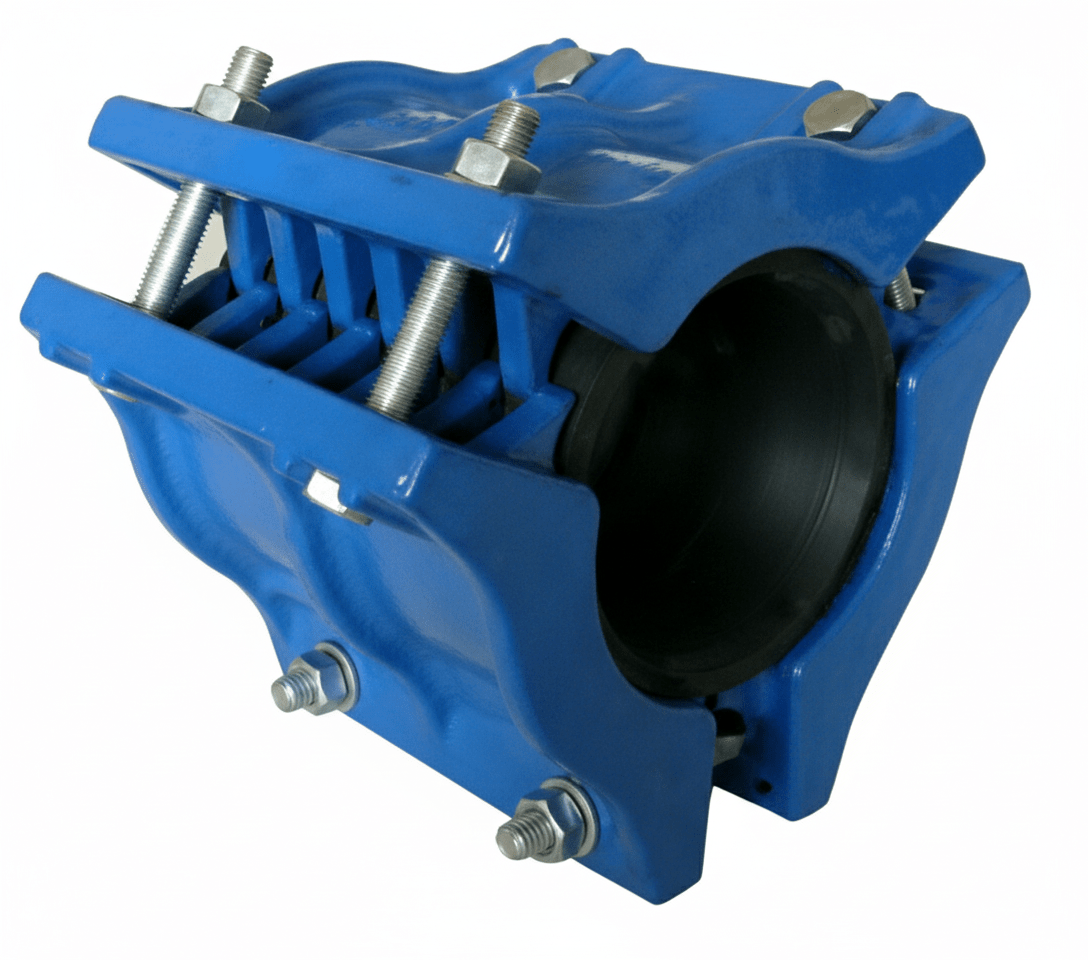

Professional three-piece ductile iron repair clamp designed for multiple pipe types with EN545 compliance and PN10/PN16 pressure ratings. This versatile repair clamp provides reliable sealing and structural support for various pipe materials with its innovative three-piece design.
Key Features:
- Repair clamp standard: EN545
- Coating standard: EN30677
- Test standard: EN12266-1
- Size range: DN40 to DN300
- Working pressure: PN10/PN16
- Temperature range (EPDM gasket): -10°C to 120°C
- Temperature range (NBR gasket): -10°C to 82°C
- Connection for: PVC, HDPE, DI, Steel, GRP pipes
- Suitable for: potable water, neutral liquids and sewage
- WRAS approval: Available upon request
- Three-piece design for enhanced flexibility
Applications:
- PVC pipe connections
- HDPE pipe repairs
- Ductile iron pipe connections
- Steel pipe repairs
- GRP pipe connections
- Potable water systems
- Neutral liquids applications
- Sewage systems
- Industrial piping repairs
- Emergency pipe repairs
Material Specification:
| SR.NO. | PARTS NAME | MATERIAL |
|---|---|---|
| 1 | Body | Ductile Iron |
| 2 | Gasket | EPDM |
| 3 | Bolts | Gal.grade 8.8 carbon steel |
| 4 | Nut | Gal.grade 8.8 carbon steel |
| 5 | Washer | Gal.grade 8.8 carbon steel |
Surface Coating: Surface can be Fusion Bonded Epoxy coating, nylon 11 coating or upon client request
DIMENSIONS (UNIT MM)
| DN | RANGE | L | BOLTS SIZE | BOLTS NO. | WEIGHT(KG) |
|---|---|---|---|---|---|
| 40 | 53-58 | 120 | M12x80 | 6 | 3.43 |
| 60 | 58-75 | 150 | M12x80 | 6 | 5.39 |
| 80 | 84-109 | 150 | M14x110 | 6 | 8.34 |
| 100 | 108-125 | 150 | M16x120 | 6 | 9.22 |
| 125 | 136-159 | 200 | M16x120 | 6 | 15.28 |
| 150 | 159-184 | 210 | M16x120 | 6 | 16.72 |
| 200 | 211-238 | 210 | M16x120 | 6 | 23.4 |
| 250 | 251-283 | 210 | M20x130 | 6 | 27.78 |
| 300 | 310-340 | 210 | M20x130 | 6 | 35.08 |
Please note dimension may vary at our discretion.
Additional information
| Size | DN40, DN60, DN80, DN100, DN125, DN150, DN200, DN250, DN300 |
|---|
