Full stainless steel repair clamp PN10/16 (double band)
Description
Full Stainless Steel Repair Clamp PN10/16
Professional full stainless steel repair clamp designed for superior corrosion resistance with EN545 compliance and PN10/16 pressure ratings. This premium repair clamp provides exceptional durability and reliability in demanding applications.
Product overview
- Repair clamp standard: EN545
- Test standard: EN12266-1
- Size range: DN50 to DN2000
- Working pressure: PN16/PN10/PN6/PN4
- Temperature range (EPDM gasket): -10°C to 120°C
- Temperature range (NBR gasket): -10°C to 82°C
- Suitable for: potable water, neutral liquids and sewage
- Wras approval: Available upon request
- Full stainless steel construction
- Superior corrosion resistance
- Single band design for standard sizes
- Double band recommended for sizes >DN250
Applications
- Stainless steel pipe repairs
- Potable water systems
- Neutral liquids applications
- Sewage systems
- Corrosive environments
- Food processing applications
- Pharmaceutical systems
- Industrial piping repairs
- Marine applications
- Chemical processing

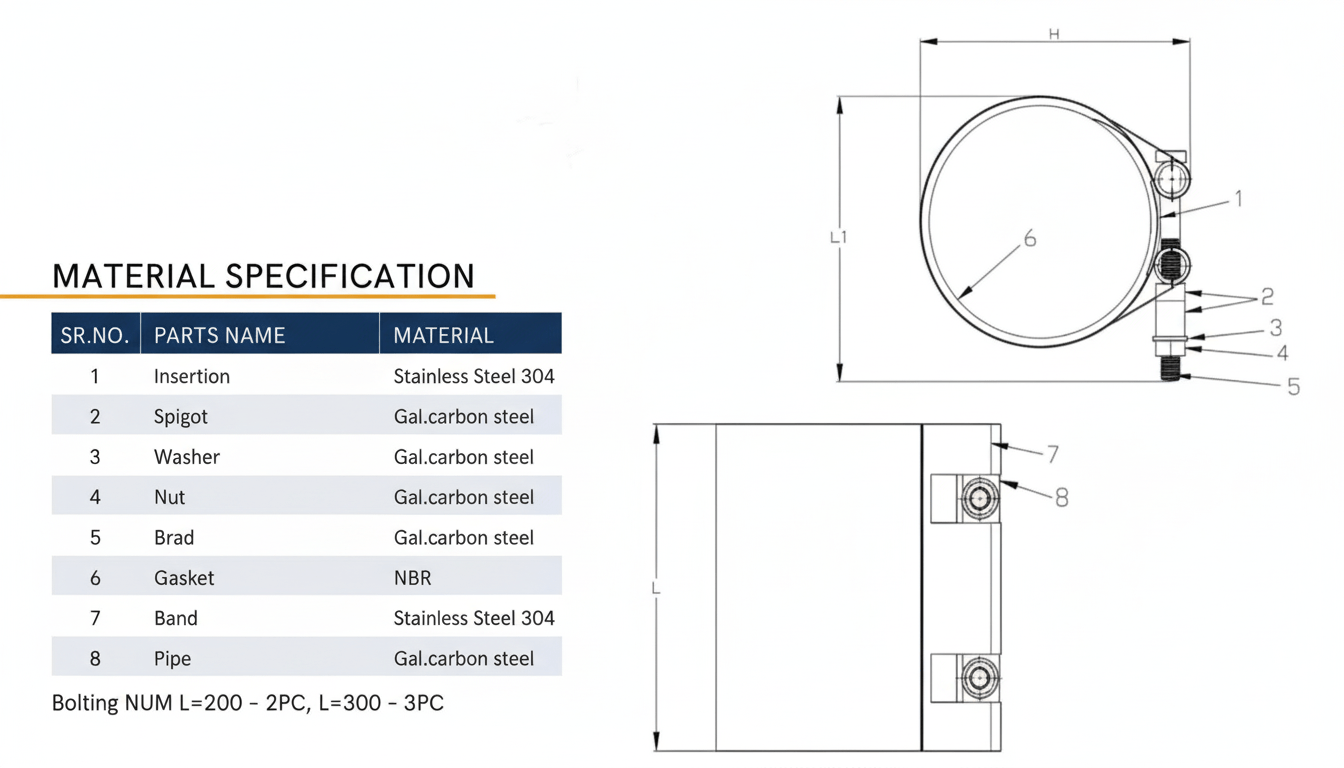

Material specification
| No. | Part name | Material |
|---|---|---|
| 1 | Insertion | Stainless Steel 304 |
| 2 | Spigot | Gal.carbon steel |
| 3 | Washer | Gal.carbon steel |
| 4 | Nut | Gal.carbon steel |
| 5 | Brad | Gal.carbon steel |
| 6 | Gasket | NBR |
| 7 | Band | Stainless Steel 304 |
| 8 | Pipe | Gal.carbon steel |
Bolting: Num L=200 – 2PC, L=300 – 3PC
Dimensions (Unit MM)
| Size DN | Length | Range | Band Min. Thickness | Insertion Min. Thickness | Band NO. |
|---|---|---|---|---|---|
| 50 | 200 | 60-65 | 0.7 | 0.9 | Single Band |
| 50 | 250 | 60-64 | 0.7 | 0.9 | Double Bands |
| 50 | 300 | 60-65 | 0.7 | 0.9 | Single Band |
| 65 | 200 | 75-80 | 0.7 | 0.9 | Single Band |
| 65 | 250 | 75-80 | 0.7 | 0.9 | Double Bands |
| 65 | 300 | 75-80 | 0.7 | 0.9 | Single Band |
| 80 | 200 | 88-95 | 0.7 | 0.9 | Single Band |
| 80 | 250 | 88-95 | 0.7 | 0.9 | Double Bands |
| 80 | 300 | 88-95 | 0.7 | 0.9 | Single Band |
| 100 | 200 | 108-118 | 0.7 | 0.9 | Single Band |
| 100 | 250 | 108-118 | 0.7 | 0.9 | Double Bands |
| 100 | 300 | 108-118 | 0.7 | 0.9 | Single Band |
| 125 | 200 | 132-140 | 0.7 | 0.9 | Single Band |
| 125 | 250 | 132-140 | 0.7 | 0.9 | Double Bands |
| 125 | 300 | 132-140 | 0.7 | 0.9 | Single Band |
| 150 | 200 | 165-175 | 0.7 | 0.9 | Single Band |
| 150 | 250 | 165-175 | 0.7 | 0.9 | Double Bands |
| 150 | 300 | 165-175 | 0.7 | 0.9 | Single Band |
| 200 | 200 | 219-229 | 0.7 | 0.9 | Single Band |
| 200 | 250 | 219-229 | 0.7 | 0.9 | Double Bands |
| 200 | 300 | 219-229 | 0.7 | 0.9 | Single Band |
| 250 | 200 | 273-283 | 0.7 | 0.9 | Single Band |
| 250 | 250 | 273-283 | 0.7 | 0.9 | Double Bands |
| 250 | 300 | 273-283 | 0.7 | 0.9 | Single Band |
| 300 | 200 | 320-330 | 0.7 | 0.9 | Single Band |
| 300 | 250 | 320-330 | 0.7 | 0.9 | Double Bands |
| 300 | 300 | 320-330 | 0.7 | 0.9 | Single Band |
Note: Other range and length is available upon request.
Please note dimension may vary at our discretion.
The double-band full stainless steel repair clamp provides enhanced sealing contact for larger diameters and demanding leak repairs on PN10/16 systems. Built for industrial durability with EN545 compliance, it is a preferred choice for utilities and contractors maintaining critical networks.
Competitive advantages include full stainless corrosion resistance, defined pressure tolerance and responsive B2B support. Contact us for MOQ, pricing and datasheets.
Frequently asked questions
Why choose double-band over single-band stainless clamps?
Double-band designs distribute clamping force across a wider area, improving stability on larger pipe diameters and irregular leak locations. Recommended for sizes above DN250 per product guidance.
Can this clamp be installed on live lines?
Installation procedures depend on site safety rules. Many utilities install under controlled depressurisation. Follow your HSE protocol and torque specifications supplied with the product.
Do you provide corrosion resistance documentation?
Yes. Material specifications and test standards are available on request for tender and quality files.
Additional information
| Size | DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300 |
|---|
