Dedicated coupling for ductile iron pipe PN10/16
Dedicated coupling for ductile iron pipes, compliant with EN545 standard.
Description
Dedicated Coupling For Ductile Iron Pipe PN10/PN16
The Dedicated Coupling for Ductile Iron Pipe is a specialized pipe fitting designed exclusively for EN545/Iso2531 ductile iron pipes. This robust coupling provides a secure connection between ductile iron pipes, making it the ideal solution for water distribution systems, sewage networks, and industrial applications where ductile iron pipe is the primary material.
Product overview
- Dedicated Design: Specifically designed for EN545/Iso2531 ductile iron pipes
- Dual Pressure Ratings: Available in PN10 and PN16 pressure ratings
- Wide Size Range: From DN40 to DN2000 for comprehensive coverage
- Angular Deflection: ±4° for flexible installation
- High-Quality Materials: Carbon steel center sleeve with ductile iron end rings
- Durable Gaskets: EPDM gaskets for various temperature ranges
- Corrosion Protection: EN30677 coating standard for enhanced durability
- Reliable Bolting: Galvanized steel bolts, washers, and nuts
- Standard Compliance: Meets EN545, EN30677, and EN12266-1 standards
Specifications
| Specification | Value |
|---|---|
| Dedicated Coupling Standard | EN545 |
| Coating Standard | EN30677 |
| Test Standard | EN12266-1 |
| Size Range | DN40 to DN2000 |
| Working Pressure | PN10/PN16 |
| Temperature Range (EPDM Gasket) | -10°C to 120°C |
| Temperature Range (NBR Gasket) | -10°C to 82°C |
| Angular Deflection | ±4° |
| Connection Type | EN545/Iso2531 ductile iron pipe |
| Suitable For | Potable water, neutral liquids, sewage |
| Wras Approved | Available upon request |

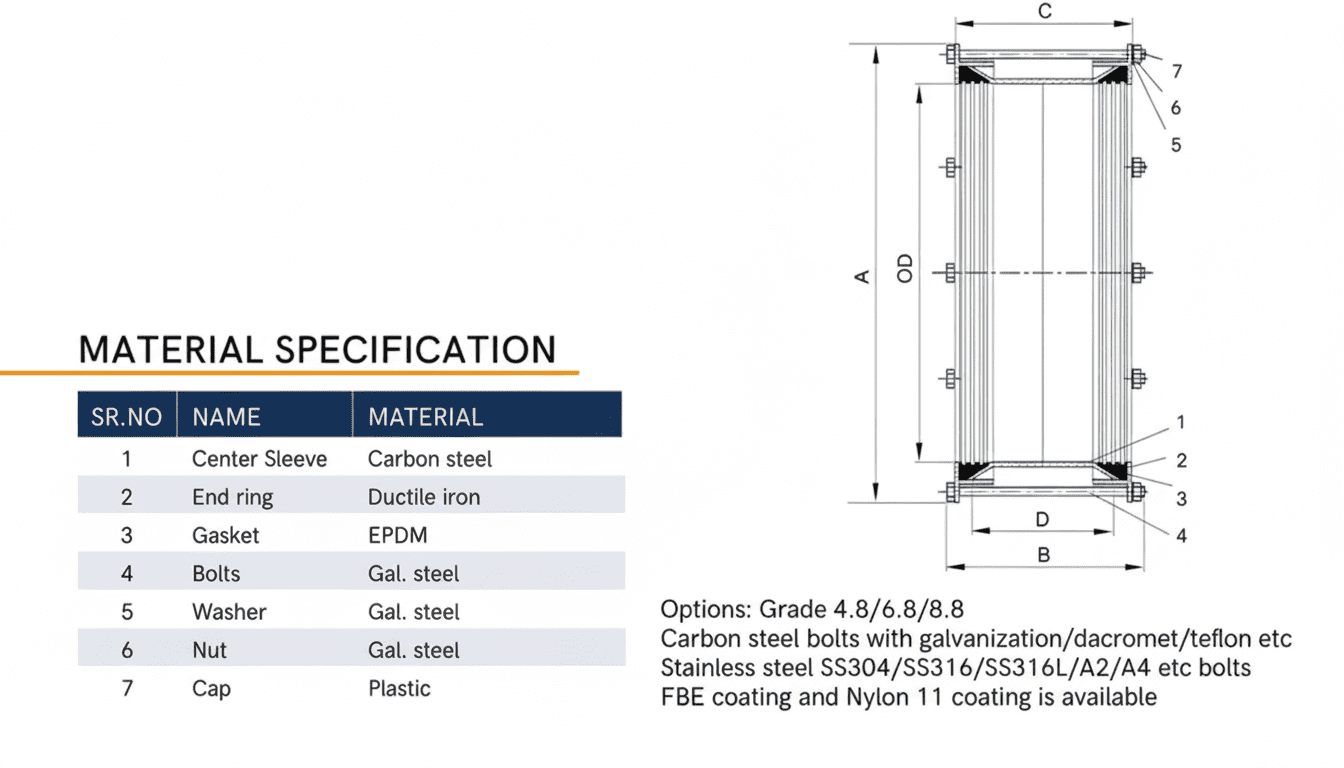

Material specification
| No. | Name | Material |
|---|---|---|
| 1 | Center Sleeve | Carbon steel |
| 2 | End ring | Ductile iron |
| 3 | Gasket | EPDM |
| 4 | Bolts | Gal. steel (Galvanized steel) |
| 5 | Washer | Gal. steel (Galvanized steel) |
| 6 | Nut | Gal. steel (Galvanized steel) |
| 7 | Cap | Plastic |
Available options
- Bolt Grades: Grade 4.8/6.8/8.8 carbon steel bolts with galvanization/dacromet/teflon coating
- Stainless Steel Bolts: SS304/SS316/Ss316l/a2/a4 available
- Special Coatings: Fbe coating and Nylon 11 coating available
- Custom Sizes: Other ranges available upon request
Applications
- Water distribution systems
- Sewage and wastewater systems
- Industrial piping connections
- Ductile iron pipe to ductile iron pipe connections
- System expansions and modifications
- Equipment connections
- Pump and valve installations
- Retrofitting existing ductile iron systems
- Municipal water networks
- Industrial process piping
Benefits
- Specialized: Designed specifically for ductile iron pipes
- Reliable: Proven design with consistent performance
- Durable: High-quality materials ensure long service life
- Easy Installation: Simple bolt and nut assembly process
- Cost Effective: Optimized for ductile iron pipe applications
- Maintenance Friendly: Easy to disassemble for maintenance
- Standard Compliant: Meets all relevant European standards
- Wide Range: Covers sizes from DN40 to DN2000
Note: Please note dimension may vary at our discretion. Other range is also available upon request. This dedicated coupling is designed specifically for connecting EN545/Iso2531 ductile iron pipes with PN10/PN16 pressure ratings.
Dimensions (MM) – Complete Range (DN40-DN2000):
| Size | Pipe OD | A | B | C | D | Bolts NO. | Bolts Size (MxL) |
|---|---|---|---|---|---|---|---|
| DN40 | 56 | 120 | 166 | 125 | 102 | 2 | M12x158 |
| DN50 | 66 | 126 | 166 | 125 | 102 | 2 | M12x158 |
| DN60 | 77 | 135 | 166 | 125 | 102 | 2 | M12x158 |
| DN65 | 82 | 156 | 166 | 125 | 102 | 2 | M12x158 |
| DN80 | 98 | 184 | 166 | 130 | 102 | 4 | M12x158 |
| DN100 | 118 | 205 | 166 | 130 | 102 | 4 | M12x158 |
| DN125 | 144 | 232 | 166 | 130 | 102 | 4 | M12x158 |
| DN150 | 170 | 264 | 173 | 133 | 102 | 4 | M12x165 |
| DN200 | 222 | 315 | 173 | 133 | 102 | 6 | M12x165 |
| DN250 | 274 | 374 | 173 | 136 | 102 | 6 | M12x165 |
| DN300 | 326 | 426 | 173 | 136 | 102 | 6 | M12x165 |
| DN350 | 378 | 494 | 254 | 200 | 152 | 8 | M16x240 |
| DN400 | 429 | 544 | 254 | 200 | 152 | 8 | M16x240 |
| DN450 | 480 | 595 | 254 | 200 | 152 | 10 | M16x240 |
| DN500 | 532 | 650 | 254 | 210 | 152 | 10 | M16x240 |
| DN600 | 635 | 753 | 254 | 210 | 152 | 12 | M16x240 |
| DN700 | 738 | 858 | 254 | 210 | 152 | 12 | M16x240 |
| DN800 | 842 | 962 | 254 | 210 | 152 | 12 | M16x240 |
| DN900 | 942 | 1070 | 280 | 238 | 178 | 14 | M16x280 |
| DN1000 | 1048 | 1173 | 280 | 238 | 178 | 14 | M16x280 |
| DN1100 | 1152 | 1282 | 280 | 240 | 178 | 16 | M16x280 |
| DN1200 | 1255 | 1385 | 280 | 240 | 178 | 18 | M16x280 |
| DN1400 | 1462 | 1592 | 295 | 250 | 178 | 20 | M20x280 |
| DN1600 | 1668 | 1798 | 295 | 250 | 178 | 24 | M20x280 |
| DN1800 | 1875 | 2015 | 375 | 320 | 254 | 32 | M20x360 |
| DN2000 | 2082 | 2222 | 375 | 320 | 254 | 36 | M20x360 |
Technical features
- Pipe OD: Outer diameter of the ductile iron pipe
- A: Overall length of the coupling
- B: Center sleeve outer diameter
- C: End ring outer diameter
- D: End ring inner diameter
- Bolts NO.: Total number of bolts required
- Bolts Size (MxL): Bolt thread size and length
Bolt Configuration:
- Small Sizes (DN40-DN65): 2 bolts M12x158
- Medium Sizes (DN80-DN125): 4 bolts M12x158
- Large Sizes (DN150-DN300): 4-6 bolts M12x165
- Extra Large Sizes (DN350-DN800): 8-12 bolts M16x240
- Very Large Sizes (DN900-DN1200): 14-18 bolts M16x280
- Maximum Sizes (DN1400-DN2000): 20-36 bolts M20x280-360
Note: Please note dimension may vary at our discretion. Other range is also available upon request. This dedicated coupling is designed specifically for connecting EN545/Iso2531 ductile iron pipes with PN10/PN16 pressure ratings.
This dedicated coupling for ductile iron pipe PN10/16 connects DI plain ends with a purpose-designed OD range — reducing installation risk versus wide-range couplings when pipe material is known. Future Maker manufactures for European utility and industrial supply chains.
Complements our restrained and universal coupling range with clear specification data. Request pricing and availability.
Frequently asked questions
When should I use a dedicated DI coupling instead of a universal coupling?
Use a dedicated DI coupling when the pipe material and OD are known ductile iron. Universal couplings suit mixed materials; dedicated designs optimise sealing for DI OD ranges.
Is it rated PN10/PN16?
Yes. Match the coupling rating to your system design pressure and do not exceed published limits.
Can I order this with restrained HDPE couplings on one PO?
Yes. Submit a combined couplings BOM for consolidated B2B quotation and logistics.
Additional information
| Coupling Type | Dedicated Coupling |
|---|---|
| Standard | EN545 |
| Coating Standard | EN30677 |
| Test Standard | EN12266-1 |
| Working Pressure | PN10/PN16 |
| Size Range | DN40 to DN2000 |
| Angular Deflection | ±4° |
| Connection Type | EN545/ISO2531 ductile iron pipe |
| Suitable For | Potable water, neutral liquids, sewage |
| Center Sleeve Material | Carbon steel |
| End Ring Material | Ductile iron |
