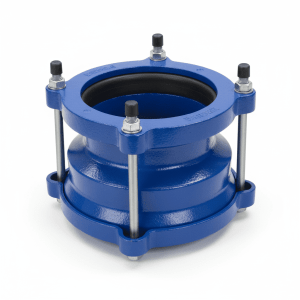

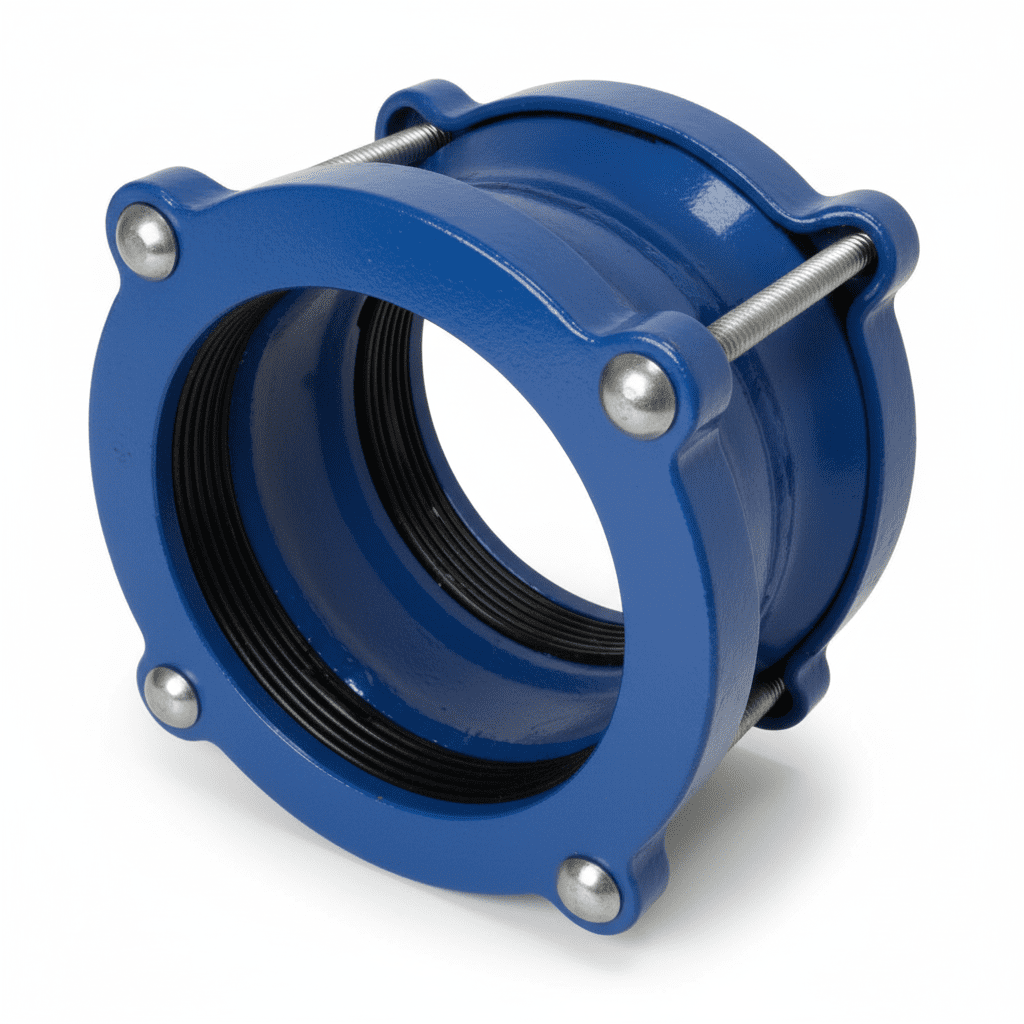

UNIVERSAL COUPLING PN10/PN16/CLASS125&150
Universal coupling with EN545 standard, PN10/PN16/CLASS125&150 pressure rating, suitable for DN40 to DN700 sizes. Connects pipes of different materials with angular deflection capability.
Description
Product Overview
High-quality universal coupling designed for EN545 standard compliance. Features excellent performance for connecting pipes of different materials including ductile iron, steel, PVC, and AC. Suitable for potable water, neutral liquids and sewage applications with angular deflection capability.
Specifications
- Universal coupling standard: Comply with EN545
- Coating standard: EN30677
- Test standard: EN12266-1
- Size range: DN40 to DN700
- Working pressure: PN10/PN16/CLASS125&150
- Temperature range (EPDM gasket): -10°C to 120°C
- Temperature range (NBR gasket): -10°C to 82°C
- Angular deflection: ±6°
- Product type: Universal Coupling
Connection Details
- For pipes in material: Ductile iron, steel, PVC, AC etc.
- OD is in our range
- Suitable for: Potable water, neutral liquids and sewage
- WRAS approved: Available upon request
Material Specification
| Component | Material |
|---|---|
| 1. Center Sleeve | Carbon steel |
| 2. End ring | Ductile iron |
| 3. Gasket | EPDM/NBR |
| 4. Bolts | Dacromet coated steel |
| 5. Washer | Dacromet coated steel |
| 6. Nut | Dacromet coated steel |
| 7. Cap | Plastic |
Options Available
- Grade 4.8/6.8/8.8 carbon steel bolts with galvanization/dacromet/teflon etc.
- Stainless steel SS304/SS316/SS316L/A2/A4 etc bolts.
- FBE coating and Nylon 11 coating is available.
Applications
Ideal for connecting pipes of different materials in water treatment facilities, chemical processing plants, sewage systems, and other applications requiring reliable universal couplings with angular deflection capability.
Please note dimension may vary at our discretion. Other range is also available upon request.
