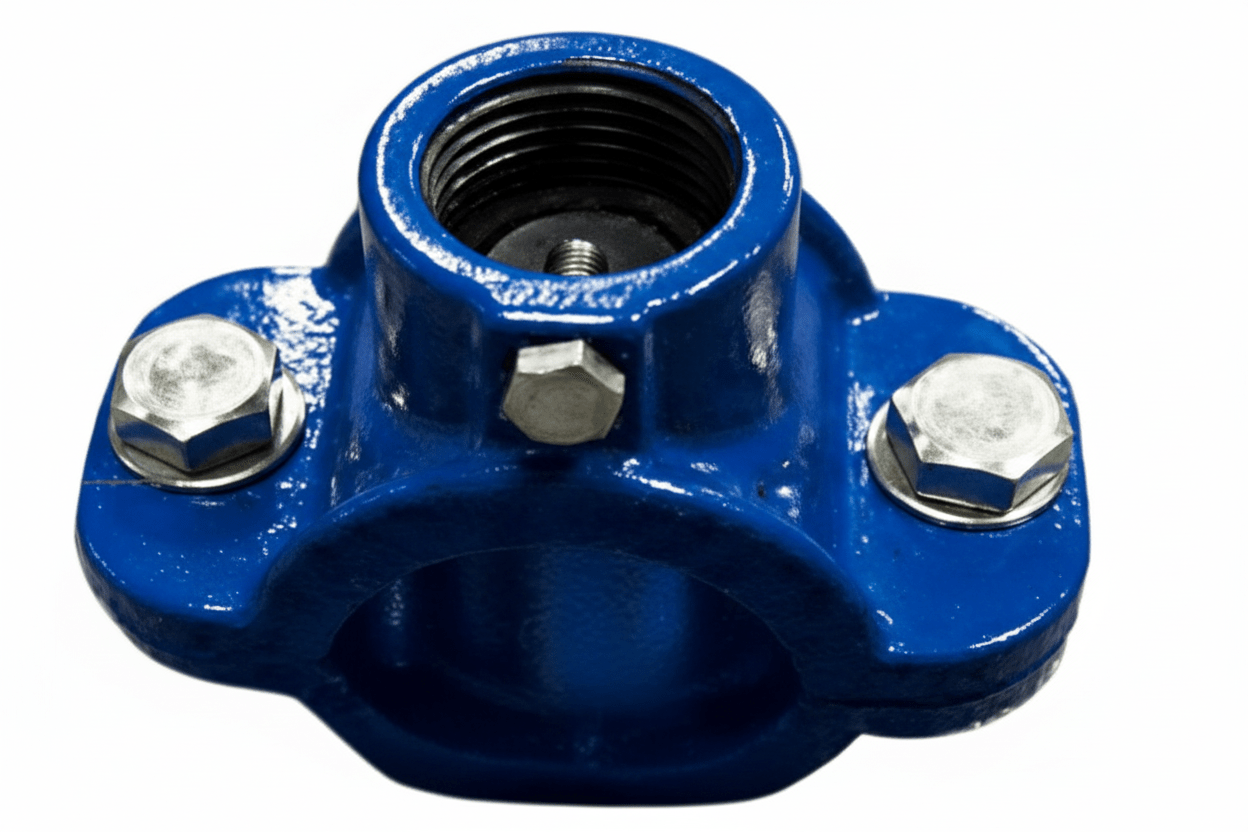

Saddle for PVC and PE Pipe with Metric Thread PN10/PN16
Description
Saddle for PVC and PE Pipe with Metric Thread PN10/PN16
Professional saddle clamp designed for PVC and PE pipes with metric thread connections and PN10/PN16 pressure ratings. This saddle provides a reliable and efficient connection solution for metric thread applications.
Key Features:
- Saddle standard: EN545
- Coating standard: EN30677
- Test standard: EN12266-1
- Size range: OD50 to OD315
- Working pressure: PN10/PN16
- Temperature (EPDM gasket): -10°C to 120°C
- Temperature (NBR gasket): -10°C to 82°C
- Connection for PVC and HDPE pipes
- Metric thread connections
- Suitable for potable water, neutral liquids and sewage
- WRAS approved available upon request
Applications:
- PVC and PE pipe connections
- Metric thread applications
- Suitable for potable water systems
- Neutral liquids applications
- Sewage systems
- Industrial piping connections
Material Specification:
| SR.NO | NAME | MATERIAL |
|---|---|---|
| 1&2 | Body | Ductile iron (EN GJS450-10) |
| 3&5 | Bolts | Carbon Steel or Stainless Steel (ISO898-1) |
| 6 | Gasket | EPDM (EN681-1) |
| 7 | Support | Plastic |
Bolt options: Dacromet coated carbon steel, stainless steel material, or supplied upon client request
Surface coating: Fusion Bonded Epoxy coating, nylon 11 coating or upon client request
Please note dimensions may vary at our discretion.
DIMENSIONS (BASED ON PN10 & PN16)
| AC PIPE DN | G (THREAD SIZE) | H1 | H2 | R |
|---|---|---|---|---|
| 50 | M40 | 14 | 55 | 26 |
| 63 | M40 | 14 | 65 | 32 |
| 75 | M40 | 14 | 75 | 38 |
| 90 | M40 | 14 | 85 | 45 |
| 110 | M40 | 14 | 95 | 55 |
| 125 | M40 | 14 | 105 | 63 |
| 140 | M55 | 19 | 105 | 71 |
| 160 | M40 | 14 | 110 | 81 |
| 180 | M40 | 14 | 120 | 91 |
| 200 | M40 | 14 | 130 | 101 |
| 225 | M40 | 14 | 140 | 113 |
| 250 | M40 | 14 | 150 | 126 |
| 280 | M40 | 14 | 165 | 141 |
| 315 | M55 | 19 | 192 | 159 |
Additional information
| Size | DN50, DN63, DN75, DN90, DN110, DN125, DN140, DN160, DN180, DN200, DN225, DN250, DN280, DN315 |
|---|
